Ferritkerne für Hochfrequenz-Transformator, ED
Basierend auf unzähligen Versuchszeiten finden wir erfolgreich über 10 Arten von Rohstoffen, die für die Herstellung von Ferritkernen geeignet sind, und wir entwickeln mehr als 900 Arten von ferromagnetischen Kernen, die unterschiedliche Formen und Spezifikationen aufweisen.
Anwendung: Antriebstransformatoren, Hochfrequenztransformatoren, Leistungsinduktivitäten, Hochfrequenz-Drosselspulen

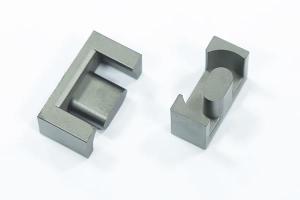

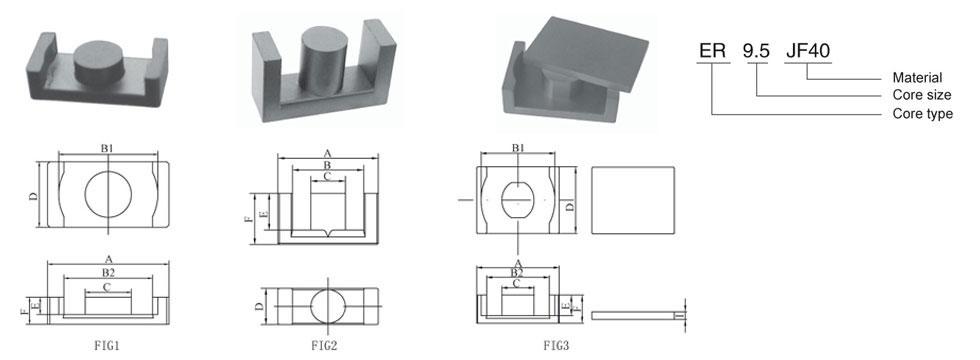

| Name | FIG. | Zeichnung-Nr. | Dimension (mm) | Gewicht | Parameter | AL±25% (nN/H2 ) | |||||||||
| A | B1 | B2 | C | D | E | F | (g) | C1 | Ae (mm2) | Le (mm) | Ve (mm3) | JF40 | |||
| ER7.5 | 1 | 850 | 7.5±0.15 | 6.1+0.25 | 5.7±0.1 | 2.6±0.1 | 4.0±0.1 | 1.725+0.1 -0.05 | 2.5 | 0.5 | 2.01 | 6 | 13.7 | 77.5 | 670 |
| ER9.5 | 1 | 739 | 9.35±0.15 | 7.4min | 7.3min | 3.4±0.1 | 4.9±0.1 | 1.675±0.075 | 2.5 | 0.6 | 1.61 | 8.6 | 14 | 120 | 950 |
| EQ20 | 1 | 1230A | 20.0±0.35 | 18.0±0.35 | 12.86±0.35 | 8.7±0.15 | 14.0±0.3 | 4.0±0.1 | 6.1±0.1 | 10.5 | 0.60 | 63 | 38 | 2380 | 3000 |
| EQ20A | 1 | 1283 | 20.0±0.3 | 18.0±0.3 | 16.15±0.25 | 8.8±0.15 | 14.0±0.25 | 4.1±0.15 | 6.3±0.1 | 10.25 | 0.58 | 54.5 | 31.7 | 1716.8 | 3400 |
| ER25 | 1 | 1231 | 25.0±0.4 | 22.0±0.4 | 15.2±0.4 | 11.0±0.2 | 18.0±0.3 | 3.2±0.15 | 5.6±0.15 | 16.6 | 0.34 | 91.89 | 31.5 | 2859.7 | 6500 |
| EQ25A | 1 | 1265 | 25.4±0.4 | 22.4±0.4 | 16.4±0.4 | 11.0±0.2 | 18.0±0.3 | 3.6±0.15 | 6.0±0.15 | 17.5 | 0.36 | 92.47 | 33.07 | 3057.9 | 5000 |
| EQ26A | 1 | 1277 | 26.2±0.4 | 22.4min (22.8) | 17.2±0.2 | 11.2±0.15 | 17.6±0.2 | 4.2±0.15 | 6.6±0.15 | 18.8 | 0.47 | 84.5 | 39.8 | 3363.5 | 5000 |
| EQ28 | 1 | 1257 | 28.0±0.5 | 24.0±0.5 | 20.0min (20.5) | 11.2±0.2 | 20.0±0.3 | 3.8±0.15 | 6.3±0.15 | 18.5 | 0.38 | 98.52 | 37.3 | 3676.4 | 4800 |
| EQ3214 | 1 | 1264 | 32.5±0.5 | 28.0±0.5 | 23.5±0.5 | 13.3±0.2 | 20.3±0.3 | 4.3±0.2 | 7.1±0.2 | 28.5 | 0.40 | 113.7 | 45.9 | 5223.2 | 5500 |
| EQ33A | 1 | 1279 | 42.2±0.6 | 31.3±0.6 | 28.35±0.6 | 15.2±0.2 | 15.2±0.2 | 15.4±0.2 | 22.4±0.2 | 28.5 | 0.40 | 113.7 | 45.9 | 5223.2 | 5500 |
| EQ3619 | 1 | 1223 | 36.0±0.6 | 28.0±0.5 | 26.0±0.5 | 15.2±0.3 | 20.0±.3 | 5.2±0.2 | 9.7±0.32 | 49 | 0.25 | 188.5 | 47.4 | 8930.6 | 6000 |
| EQR21 | 1 | 1233 | 21.4±0.4 | 17.7min | 13.5min | 9.0±0.2 | 14.0±0.2 | 5.6±0.15 | 8.1±0.15 | 13.88 | 0.58 | 68.7 | 40 | 2748 | 3400 |
| EQR2819 | 1 | 1244 | 28.0±0.4 | 23.7±0.35 | 17.7±0.3 | 12.4±0.2 | 19.2±0.3 | 6.15±0.15 | 8.9±0.15 | 29 | 0.38 | 118.6 | 44.5 | 5278.9 | 5300 |
| ER11 | 1 | 849 | 10.83±0.175 | 8.85±0.15 | 7.7min | 4.125±0.125 | 5.9±0.1 | 1.5750.075 | 2.45 | 1 | 1.25 | 11.7 | 14.6 | 173 | 1400 |
| ER20.6 | 2 | 448 | 20.6±0.3 | 14.6min | 7.1±0.2 | 7.7±0.3 | 7.8±0.3 | 10.9 | 12.1 | 0.93 | 48.9 | 45.6 | 2145.2 | 2100 | |
| ER2617 | 1 | 869 | 25.9±0.5 | 22.2±0.4 | 16.4min | 11.2±0.2 | 17.6±0.25 | 5.8±0.2 | 8.5 | 21.6 | 0.36 | 106.7 | 39.4 | 4277.5 | 4600 |
| ER2811 | 1 | 1206 | 27.6±0.5 | 20.8±.4 | 11.4±0.15 | 15.0±0.35 | 3.2 | 5.7 | 14.3 | 0.33 | 93.4 | 31.1 | 2911 | 6500 | |
| ER3016 | 1 | 787 | 30.3±0.4 | 26.0±0.4 | 19.5min | 11.0±0.3 | 19.8±0.3 | 5.5+0.3 -0.1 | 8.2 | 27.1 | 3.29 | 109.6 | 47.5 | 4817.8 | 4800 |
| ER3016A | 1 | 955 | 30.0±0.4 | 22.3min | 13.8min | 11.0±0.2 | 16.0±0.3 | 5.4±0.3 | 8.4 | 22 | 0.5 | 94.5 | 46.4 | 4493.8 | 3800 |
| ER3019 | 1 | 992 | 30.0±0.5 | 25.4±0.4 | 21.3min | 13.3±0.2 | 20.3±0.3 | 6.8±0.2 | 9.6±0.2 | 35 | 0.37 | 132 | 48.3 | 6458.8 | 6500 |
| ER3124 | 1 | 1052 | 31.5±0.5 | 26.9±0.4 | 21.5min | 13.3+0.1 -0.2 | 20.3±0.3 | 9.4±0.25 | 12.2 | 38.8 | 0.34 | 154.5 | 51.8 | 8075 | 6500 |
| ER3124A | 1 | 1241 | 31.5±0.5 | 26.9±0.4 | 22.0min | 13.3+0.1 -0.2 | 20.3±0.3 | 9.40.25 | 12.2±0.25 | 38.8 | 0.3 | 154.5 | 51.8 | 8075 | 6500 |
| ER3314 | 1 | 1215 | 33.0±0.5 | 29.0±0.5 | 24.5min | 14.8±0.3 | 25.0±0.4 | 3.75±0.15 | 7.0±0.2 | 38.4 | 0.23 | 164.7 | 38.4 | 6328.8 | 7000 |
| ER3414 | 1 | 1248 | 34.2±0.5 | 30.2±0.5 | 25.7min (26.2) | 14.8±0.3 | 25.0±0.4 (24.92) | 3.85±0.15 | 7.15±0.2 | 38 | 0.24 | 165.4 | 40.43 | 6686.6 | 7500 |
| ER35 | 1 | 1285 | 35.3±0.6 | 30.3±0.5 | 26.2±0.5 | 14.7±0.25 | 24.5±0.5 | 3.75±0.15 | 6.4±0.2 | 24.6 | 0.47 | 101.8 | 48 | 4886.4 | 3800 |
| ER3518 | 2 | 1260 | 35.2±0.5 | 27.7±0.5 | 12.0±0.3 | 12.5±0.35 | 5.2±.15 | 8.95±0.15 | 26.2 | 0.49 | 101.8 | 49.82 | 5071.7 | 3800 | |
| ER3814 | 1 | 1216 | 38.0±.5 | 33.0±0.5 | 27.5min | 16.3±0.3 | 28.0±0.4 | 3.5±0.2 | 7.0±0.2 | 48.6 | 0.19 | 205.7 | 41 | 8437.7 | 8000 |
| ER40 | 1 | 1271 | 40.0±0.5 | 35.0±0.5 | 28.0±0.5 | 16.0±0.25 | 28.4±0.35 | 3.4±0.15 | 6.2±0.2 | 44.7 | 0.30 | 159 | 47.6 | 7578 | 8000 |
| ER4042 | 2 | 1214 | 40.3±0.6 | 28.7min | 12.8+0.2 -0.3 | 12.8±0.25 | 15.5±0.25 | 21.2±0.25 | 2800 | ||||||
| ER40A | 1 | 1271-1 | 40.0±0.5 | 35.2±0.5 | 28.2±0.5 | 16.0±0.25 | 28.4±0.4 | 3.5±0.15 | 6.4±0.15 | 44.7 | 0.28 | 147.7 | 41.4 | 6114.78 | 8000 |
